Spatial Alignment¶
Integrative analysis of spatially resolved transcriptomics datasets empowers a deeper understanding of complex biological systems. However, integrating multiple tissue sections presents challenges for batch effect removal, particularly when the sections are measured by various technologies or collected at different times. Here, we propose Spatial Alignment, an unsupervised contrastive learning model that employs the expression of all measured genes and the spatial location of cells, to integrate multiple tissue sections. It enables the joint downstream analysis of multiple datasets not only in low-dimensional embeddings but also in the reconstructed full expression space. In benchmarking analysis, spatiAlign outperforms state-of-the-art methods in learning joint and discriminative representations for tissue sections, each potentially characterized by complex batch effects or distinct biological characteristics
After alignment, we will get a new expression matrix and a reduced dimensional matrix, we can use them to do others analysis such as Neighbors, UMAP, Cluster, etc.
Preparation
In order to use this function, you need to install stereopy with some necessary dependencies:
CPU: pip install stereopy[spatialign] --extra-index-url https://download.pytorch.org/whl
GPU(CUDA11): pip install stereopy[spatialign-cu11] --extra-index-url https://download.pytorch.org/whl
GPU(CUDA12): pip install stereopy[spatialign-cu12] --extra-index-url https://download.pytorch.org/whl
Reading data¶
[1]:
import stereo as st
from stereo.core.ms_pipeline import slice_generator
import warnings
warnings.filterwarnings('ignore')
Please download our example data.
[2]:
data1 = st.io.read_h5ad('../../data/BatchEval_spatiAlign_stereoAlign_demo_datasets/stereo_olfactory_bulb_ann.h5ad')
data2 = st.io.read_h5ad('../../data/BatchEval_spatiAlign_stereoAlign_demo_datasets/visium_olfactory_bulb_ann.h5ad')
ms_data = data1 + data2
ms_data
[2]:
ms_data: {'0': (1123, 27825), '1': (1184, 32285)}
num_slice: 2
names: ['0', '1']
merged_data: None
obs: []
var: []
relationship: other
var_type: intersect to 0
current_mode: integrate
current_scope: scope_[0,1]
scopes_data: []
mss: []
Merging Data¶
If there are no z-coordinate in the input data, you can specify the distance between each sample by parameter space_between to calculate the z-coordinate.
[3]:
ms_data.integrate(space_between='1um')
ms_data.merged_data
[3]:
AnnBasedStereoExpData object with n_cells X n_genes = 2307 X 26760
adata: id(140717206027232)
bin_type: bins
bin_size: 1
offset_x = None
offset_y = None
cells: ['cell_name', 'batch']
genes: ['gene_name']
cells_matrix = ['spatial']
Layers with keys:
tl.result: []
[4]:
ms_data.tl.set_scope_and_mode(scope=slice_generator[:], mode='integrate')
Preprocessing¶
[5]:
ms_data.tl.cal_qc()
ms_data.tl.raw_checkpoint()
[2025-02-20 17:32:01][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run cal_qc
[2025-02-20 17:32:01][Stereo][3375092][MainThread][140719273752384][st_pipeline][41][INFO]: start to run cal_qc...
[2025-02-20 17:32:01][Stereo][3375092][MainThread][140719273752384][st_pipeline][44][INFO]: cal_qc end, consume time 0.1102s.
[2025-02-20 17:32:01][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run raw_checkpoint
[6]:

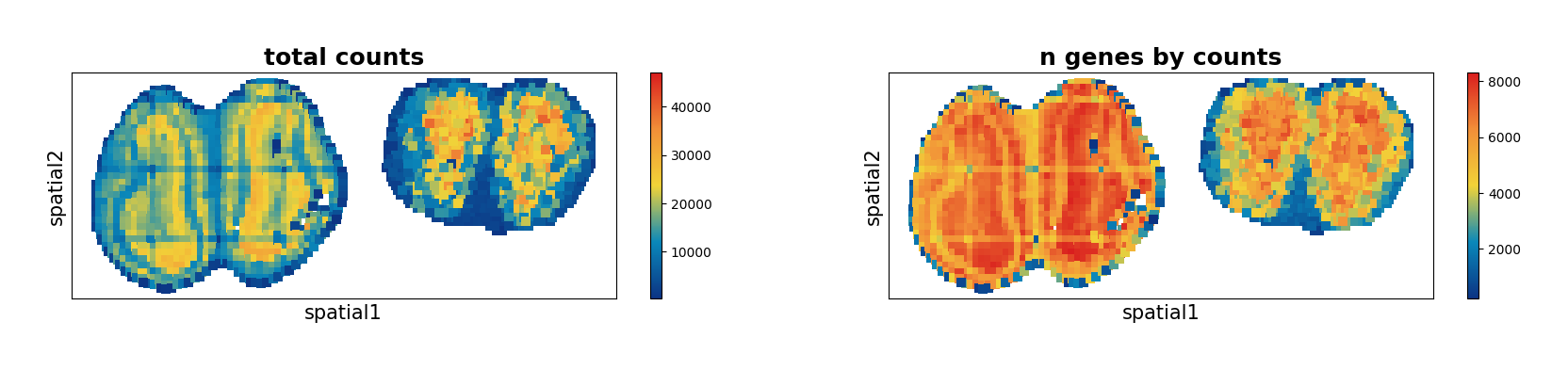

ms_data.plt.spatial_scatter(show_plotting_scale=False, reorganize_coordinate=3, horizontal_offset_additional=1000)
[2025-02-20 17:32:01][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run spatial_scatter
[6]:
[7]:
# ms_data.tl.filter_cells(min_genes=20)
# ms_data.tl.filter_genes(min_cells=20)
ms_data.tl.normalize_total()
ms_data.tl.log1p()
# ms_data.tl.scale(zero_center=False)
[2025-02-20 17:32:02][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run normalize_total
[2025-02-20 17:32:02][Stereo][3375092][MainThread][140719273752384][st_pipeline][41][INFO]: start to run normalize_total...
[2025-02-20 17:32:02][Stereo][3375092][MainThread][140719273752384][st_pipeline][44][INFO]: normalize_total end, consume time 0.0656s.
[2025-02-20 17:32:02][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run log1p
[2025-02-20 17:32:02][Stereo][3375092][MainThread][140719273752384][st_pipeline][41][INFO]: start to run log1p...
[2025-02-20 17:32:02][Stereo][3375092][MainThread][140719273752384][st_pipeline][44][INFO]: log1p end, consume time 0.4918s.
UMAP without alignment¶
We can use UMAP to inspect the effect of Spatial Alignment Integration.
[8]:
ms_data.tl.pca(use_highly_genes=False, n_pcs=50, res_key='pca')
ms_data.tl.neighbors(pca_res_key='pca', res_key='neighbors')
ms_data.tl.umap(pca_res_key='pca', neighbors_res_key='neighbors', res_key='umap')
[2025-02-20 17:32:02][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run pca
[2025-02-20 17:32:02][Stereo][3375092][MainThread][140719273752384][st_pipeline][41][INFO]: start to run pca...
[2025-02-20 17:32:02][Stereo][3375092][MainThread][140719273752384][dim_reduce][78][WARNING]: svd_solver: auto can not be used with sparse input.
Use "arpack" (the default) instead.
[2025-02-20 17:32:29][Stereo][3375092][MainThread][140719273752384][dim_reduce][99][INFO]: x_pca dType is changed from float64 to float32
[2025-02-20 17:32:29][Stereo][3375092][MainThread][140719273752384][st_pipeline][44][INFO]: pca end, consume time 26.7350s.
[2025-02-20 17:32:29][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run neighbors
[2025-02-20 17:32:29][Stereo][3375092][MainThread][140719273752384][st_pipeline][41][INFO]: start to run neighbors...
2025-02-20 17:32:32.533106: I tensorflow/tsl/cuda/cudart_stub.cc:28] Could not find cuda drivers on your machine, GPU will not be used.
2025-02-20 17:32:32.709442: I tensorflow/tsl/cuda/cudart_stub.cc:28] Could not find cuda drivers on your machine, GPU will not be used.
2025-02-20 17:32:32.711024: I tensorflow/core/platform/cpu_feature_guard.cc:182] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.
2025-02-20 17:32:33.582253: W tensorflow/compiler/tf2tensorrt/utils/py_utils.cc:38] TF-TRT Warning: Could not find TensorRT
[2025-02-20 17:32:36][Stereo][3375092][MainThread][140719273752384][st_pipeline][44][INFO]: neighbors end, consume time 6.5504s.
[2025-02-20 17:32:36][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run umap
[2025-02-20 17:32:36][Stereo][3375092][MainThread][140719273752384][st_pipeline][41][INFO]: start to run umap...
completed 0 / 500 epochs
completed 50 / 500 epochs
completed 100 / 500 epochs
completed 150 / 500 epochs
completed 200 / 500 epochs
completed 250 / 500 epochs
completed 300 / 500 epochs
completed 350 / 500 epochs
completed 400 / 500 epochs
completed 450 / 500 epochs
[2025-02-20 17:32:38][Stereo][3375092][MainThread][140719273752384][st_pipeline][44][INFO]: umap end, consume time 2.4514s.
[9]:
ms_data.plt.batches_umap(res_key='umap')
[2025-02-20 17:32:38][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run batches_umap
[9]:
We can see, the distribution of these two batches of data on UMAP space is so different, they are separated from each other obviously.
Spatial Alignment¶
This function will ouput a corrected full expression matrix and a reduced dimensional matrix.
By default, the corrected full expression matrix is saved in data.layers, if the parameter inplace is set to True, the original expression matrix will be replaced.
The reduced dimensional matrix is stored by key ‘aligned_reduction’, you can specify the dimensions to reduction by parameter latent_dims.
More details about other parameters in API.
Spatial Alignment can be run with the data only containing highly variable genes, this usually can lead to better performance, in this case, the data will be filtered to only contain highly variable genes after running Spatial Alignment.
[10]:
# ms_data.tl.highly_variable_genes(
# min_mean=0.0125,
# max_mean=3,
# min_disp=0.5,
# n_top_genes=2000,
# res_key='highly_variable_genes'
# )
Here we run Spatial Alignment with entire data, if you want to only use highly variable genes, you need to uncomment the codes in the notebook cell above to run ms_data.tl.highly_variable_genes beforehand and set the parameter use_hvg to True.
[11]:
ms_data.tl.spatial_alignment(
use_hvg=False,
n_neighors=15,
is_undirected=True,
latent_dims=100,
tau1=0.05,
tau2=0.01,
tau3=0.1,
inplace=False,
is_verbose=False
)
[2025-02-20 17:32:40][Stereo][3375092][MainThread][140719273752384][ms_pipeline][115][INFO]: register algorithm spatial_alignment to <class 'stereo.core.stereo_exp_data.AnnBasedStereoExpData'>-140717210444080
[2025-02-20 17:32:40][Stereo][3375092][MainThread][140719273752384][dataset][144][INFO]: The spatial coordinates specified by spatial are used to calculate nearest neighbor graphs
2025-02-20 17:32:40 Method: 'init_bank' Running...
Running time: 0.0 min 1.4996 s
2025-02-20 17:32:42 Method: 'train' Running...
2025-02-20 17:45:02 Epoch: 139 Loss: 7.0915 Loss min: 7.0402 EarlyStopping counter: 15 out of 15
2025-02-20 17:45:02 Model Training Finished!
Running time: 12.0 min 20.3509 s
2025-02-20 17:45:02 Method: 'alignment' Running...
2025-02-20 17:45:05 Batch Alignment Finished!
Running time: 0.0 min 3.1240 s
[12]:
ms_data.tl.result['aligned_reduction']
[12]:
| 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ... | 90 | 91 | 92 | 93 | 94 | 95 | 96 | 97 | 98 | 99 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0.009977 | -0.091885 | -0.106940 | 0.145098 | 0.089974 | -0.008399 | 0.162432 | -0.314220 | 0.239323 | -0.151989 | ... | -0.256612 | 0.202301 | -0.169625 | 0.070727 | 0.058331 | -0.072663 | -0.213056 | 0.276813 | -0.194957 | -0.036370 |
| 1 | -0.076175 | -0.239181 | -0.171321 | 0.228486 | 0.024512 | 0.017261 | 0.080949 | -0.253091 | 0.123381 | 0.017464 | ... | -0.285186 | 0.214535 | -0.196208 | 0.082946 | 0.063450 | 0.009587 | -0.216828 | 0.179361 | -0.280448 | -0.104205 |
| 2 | -0.036215 | -0.233678 | -0.163343 | 0.184396 | 0.114535 | 0.101297 | 0.147587 | -0.299150 | 0.153697 | -0.072609 | ... | -0.296751 | 0.125169 | -0.182926 | 0.224416 | 0.107030 | -0.019341 | -0.276176 | 0.260968 | -0.242852 | -0.041470 |
| 3 | -0.062999 | -0.305679 | -0.179629 | 0.098737 | 0.140392 | 0.254699 | 0.062434 | -0.322186 | 0.101131 | -0.168877 | ... | -0.189232 | -0.007272 | -0.269327 | 0.233675 | 0.138923 | 0.048628 | -0.311299 | 0.243654 | -0.276228 | 0.054752 |
| 4 | 0.081919 | -0.314154 | -0.131669 | 0.022888 | 0.037666 | 0.142007 | -0.056440 | -0.323457 | 0.072555 | -0.095923 | ... | -0.221495 | 0.058406 | -0.209400 | 0.087003 | 0.099748 | 0.104273 | -0.297579 | 0.188548 | -0.273973 | 0.052728 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 2302 | 0.356144 | 0.078517 | 0.435474 | -0.211080 | -0.091554 | -0.124335 | -0.088007 | 0.018068 | -0.367442 | 0.370240 | ... | -0.355697 | -0.023487 | 0.274631 | 0.198752 | -0.272967 | -0.418953 | -0.037732 | -0.202396 | 0.363269 | -0.308682 |
| 2303 | -0.006577 | -0.225398 | 0.104167 | 0.171594 | -0.265057 | 0.188282 | -0.131274 | 0.209731 | -0.066610 | 0.026982 | ... | -0.115878 | 0.106854 | 0.299534 | 0.020559 | -0.024644 | -0.157923 | 0.020815 | -0.281706 | -0.018450 | 0.064131 |
| 2304 | 0.235737 | 0.388830 | -0.197873 | -0.283984 | -0.063494 | 0.065340 | -0.130950 | -0.278878 | 0.273952 | -0.049268 | ... | 0.479300 | -0.318692 | 0.026394 | -0.242704 | 0.492687 | 0.289297 | -0.069553 | 0.286800 | 0.156109 | 0.370372 |
| 2305 | 0.030273 | 0.065268 | -0.096198 | -0.190912 | -0.169639 | 0.747086 | -0.136572 | -0.264383 | 0.152184 | -0.228118 | ... | 0.198014 | -0.131973 | 0.067535 | -0.281841 | 0.290346 | -0.156325 | 0.006843 | 0.300321 | -0.121258 | -0.078710 |
| 2306 | 0.175933 | 0.154506 | -0.121935 | -0.212189 | -0.285967 | 0.216793 | -0.014016 | -0.147251 | -0.018139 | 0.019123 | ... | 0.038161 | 0.045721 | 0.067250 | -0.466156 | 0.359383 | 0.022651 | 0.134133 | 0.186027 | -0.064617 | -0.087383 |
2307 rows × 100 columns
UMAP based on aligned data¶
Here you need to set the pca_res_key to ‘aligned_reduction’.
[13]:
ms_data.tl.neighbors(pca_res_key='aligned_reduction', res_key='neighbors_aligned', n_jobs=-1)
ms_data.tl.umap(pca_res_key='aligned_reduction', neighbors_res_key='neighbors_aligned', res_key='umap_aligned')
[2025-02-20 17:45:05][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run neighbors
[2025-02-20 17:45:05][Stereo][3375092][MainThread][140719273752384][st_pipeline][41][INFO]: start to run neighbors...
[2025-02-20 17:45:06][Stereo][3375092][MainThread][140719273752384][st_pipeline][44][INFO]: neighbors end, consume time 0.2505s.
[2025-02-20 17:45:06][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run umap
[2025-02-20 17:45:06][Stereo][3375092][MainThread][140719273752384][st_pipeline][41][INFO]: start to run umap...
completed 0 / 500 epochs
completed 50 / 500 epochs
completed 100 / 500 epochs
completed 150 / 500 epochs
completed 200 / 500 epochs
completed 250 / 500 epochs
completed 300 / 500 epochs
completed 350 / 500 epochs
completed 400 / 500 epochs
[2025-02-20 17:45:09][Stereo][3375092][MainThread][140719273752384][st_pipeline][44][INFO]: umap end, consume time 3.0552s.
completed 450 / 500 epochs
[14]:
ms_data.plt.batches_umap(res_key='umap_aligned')
[2025-02-20 17:45:09][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run batches_umap
[14]:
The distribution on UMAP space which is created based on aligned data is almost overlap.
Cluster based on aligned data¶
[15]:
ms_data.tl.leiden(neighbors_res_key='neighbors_aligned', res_key='leiden')
[2025-02-20 17:45:09][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run leiden
[2025-02-20 17:45:09][Stereo][3375092][MainThread][140719273752384][st_pipeline][41][INFO]: start to run leiden...
[2025-02-20 17:45:09][Stereo][3375092][MainThread][140719273752384][st_pipeline][44][INFO]: leiden end, consume time 0.4079s.

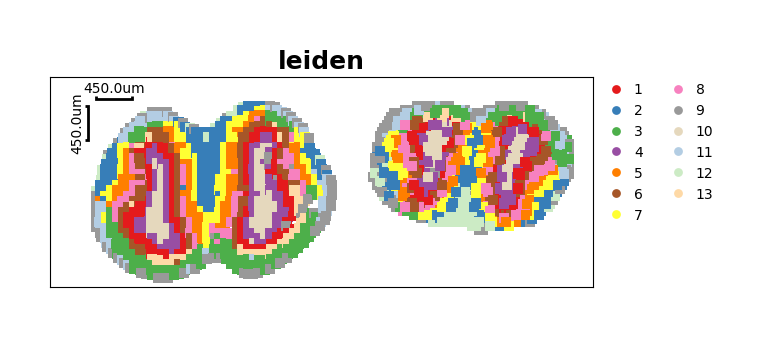

[16]:
ms_data.plt.cluster_scatter(
res_key='leiden',
show_plotting_scale=True,
reorganize_coordinate=3,
horizontal_offset_additional=1000
)
[2025-02-20 17:45:09][Stereo][3375092][MainThread][140719273752384][ms_pipeline][125][INFO]: data_obj(idx=0) in ms_data start to run cluster_scatter
[16]:
