SpaSEG¶
SpaSEG, an unsupervised convolutional neural network-based method towards multiple SRT analysis tasks by jointly learning transcriptional similarity between spots and their spatial dependence within tissue. SpaSEG adopts edge strength constraint to enable coherent spatial domains, and allows integrative SRT analysis by automatically aligning spatial domains across multiple adjacent sections. Moreover, SpaSEG can effectively detect spatial domain-specific gene expression patterns(SVG), and infer intercellular interactions and co-localizations[Bai23].
Note
Torch is necessary for SpaSEG:
CPU: pip install torch==2.4.1+cpu --extra-index-url https://download.pytorch.org/whl
GPU(CUDA11): pip install torch==2.4.1+cu118 --extra-index-url https://download.pytorch.org/whl/
GPU(CUDA12): pip install torch==2.4.1+cu124 --extra-index-url https://download.pytorch.org/whl/
[1]:
import os
from natsort import natsorted
from glob import glob
import stereo as st
from stereo.core.ms_data import MSData
from stereo.core.ms_pipeline import slice_generator
Reading Data¶
Download our example data, the demo data used here is 16 samples of 3D drosophila stereo-seq data.
bin_type is important for constructing the training data, it must be input correctly, available bin_type are ‘bins’ and ‘cell_bins’.
Note
Currently, this algorithm only supports AnnData, if your data is read from GEF/GEM file, you can use st.io.stereo_to_anndata to convert your data to AnnData and reload the data by st.io.read_h5ad.
[2]:
data_dir = '../data/3D/'
file_list = natsorted(glob(os.path.join(data_dir, '*.h5ad')))
data_list = [st.io.read_h5ad(f, bin_type='bins', bin_size=1) for f in file_list]
data_list[0]
[2]:
AnnData object with n_obs × n_vars = 482 × 13668
obs: 'slice_ID', 'raw_x', 'raw_y', 'new_x', 'new_y', 'new_z', 'annotation'
uns: 'bin_type', 'bin_size', 'sn'
obsm: 'X_umap', 'spatial', 'spatial_elas', 'spatial_rigid'
layers: 'raw_counts'
Due to our demo data has been done some preprocessing, we need to restore the data to oringinal.
Here we also move the coordinates of cells/bins to origin and shrink the coordinate space, it is helpful in reducing the memory consumption.
Whether to run this step depends on your input data, it is not necessary.
[3]:
for data in data_list:
# restore the data to oringinal
data.adata.X = data.adata.layers['raw_counts']
data.adata.obsm['spatial'][:, 0] = data.adata.obs['raw_x'].to_numpy(copy=True)
data.adata.obsm['spatial'][:, 1] = data.adata.obs['raw_y'].to_numpy(copy=True)
# move the coordinates to origin and shrink the coordinate space
data.adata.obsm['spatial'] = data.adata.obsm['spatial'].astype(float)
data.adata.obsm['spatial'] -= data.adata.obsm['spatial'].min(axis=0)
data.adata.obsm['spatial'] /= 20
data.adata.obsm['spatial'] = data.adata.obsm['spatial'].astype('int64')
Constructing Multi-sample data structure¶
[4]:
ms_data = MSData(_data_list=data_list)
ms_data
[4]:
ms_data: {'0': (482, 13668), '1': (549, 13668), '2': (598, 13668), '3': (713, 13668), '4': (744, 13668), '5': (815, 13668), '6': (925, 13668), '7': (1272, 13668), '8': (1263, 13668), '9': (1248, 13668), '10': (1039, 13668), '11': (1260, 13668), '12': (959, 13668), '13': (1078, 13668), '14': (1240, 13668), '15': (1110, 13668)}
num_slice: 16
names: ['0', '1', '2', '3', '4', '5', '6', '7', '8', '9', '10', '11', '12', '13', '14', '15']
obs: []
var: []
relationship: other
var_type: intersect to 0
mss: []
QC for each sample¶
set mode to ‘isolated’ to run cal_qc on each sample.
[5]:
ms_data.tl.cal_qc(mode='isolated')
[2024-08-01 05:40:14][Stereo][53425][Thread-5][139619555030784][ms_pipeline][207][INFO]: data_obj(idx=0) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-6][139619563423488][ms_pipeline][207][INFO]: data_obj(idx=1) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-7][139619571816192][ms_pipeline][207][INFO]: data_obj(idx=2) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-8][139619580208896][ms_pipeline][207][INFO]: data_obj(idx=3) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-9][139623447410432][ms_pipeline][207][INFO]: data_obj(idx=4) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-10][139622633711360][ms_pipeline][207][INFO]: data_obj(idx=5) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-11][139621954230016][ms_pipeline][207][INFO]: data_obj(idx=6) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-12][139621811619584][ms_pipeline][207][INFO]: data_obj(idx=7) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-5][139619555030784][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-13][139620997920512][ms_pipeline][207][INFO]: data_obj(idx=8) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-14][139620318439168][ms_pipeline][207][INFO]: data_obj(idx=9) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-6][139619563423488][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-15][139620175828736][ms_pipeline][207][INFO]: data_obj(idx=10) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-16][139620033218304][ms_pipeline][207][INFO]: data_obj(idx=11) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-17][139620024825600][ms_pipeline][207][INFO]: data_obj(idx=12) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-18][139620016432896][ms_pipeline][207][INFO]: data_obj(idx=13) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-19][139620008040192][ms_pipeline][207][INFO]: data_obj(idx=14) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-20][139619999647488][ms_pipeline][207][INFO]: data_obj(idx=15) in ms_data start to run cal_qc
[2024-08-01 05:40:14][Stereo][53425][Thread-7][139619571816192][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-8][139619580208896][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-9][139623447410432][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-10][139622633711360][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-11][139621954230016][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-12][139621811619584][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-13][139620997920512][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-14][139620318439168][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-15][139620175828736][st_pipeline][41][INFO]: start to run cal_qc...
[Parallel(n_jobs=16)]: Using backend ThreadingBackend with 16 concurrent workers.
[2024-08-01 05:40:14][Stereo][53425][Thread-16][139620033218304][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-17][139620024825600][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-18][139620016432896][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-19][139620008040192][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-20][139619999647488][st_pipeline][41][INFO]: start to run cal_qc...
[2024-08-01 05:40:14][Stereo][53425][Thread-5][139619555030784][st_pipeline][44][INFO]: cal_qc end, consume time 0.5445s.
[2024-08-01 05:40:14][Stereo][53425][Thread-10][139622633711360][st_pipeline][44][INFO]: cal_qc end, consume time 0.5275s.
[2024-08-01 05:40:14][Stereo][53425][Thread-7][139619571816192][st_pipeline][44][INFO]: cal_qc end, consume time 0.5462s.
[2024-08-01 05:40:14][Stereo][53425][Thread-6][139619563423488][st_pipeline][44][INFO]: cal_qc end, consume time 0.5748s.
[2024-08-01 05:40:14][Stereo][53425][Thread-9][139623447410432][st_pipeline][44][INFO]: cal_qc end, consume time 0.5600s.
[2024-08-01 05:40:14][Stereo][53425][Thread-8][139619580208896][st_pipeline][44][INFO]: cal_qc end, consume time 0.5816s.
[2024-08-01 05:40:14][Stereo][53425][Thread-12][139621811619584][st_pipeline][44][INFO]: cal_qc end, consume time 0.6240s.
[2024-08-01 05:40:14][Stereo][53425][Thread-15][139620175828736][st_pipeline][44][INFO]: cal_qc end, consume time 0.2980s.
[2024-08-01 05:40:14][Stereo][53425][Thread-14][139620318439168][st_pipeline][44][INFO]: cal_qc end, consume time 0.5799s.
[Parallel(n_jobs=16)]: Done 1 tasks | elapsed: 0.6s
[Parallel(n_jobs=16)]: Done 2 out of 16 | elapsed: 0.6s remaining: 4.0s
[Parallel(n_jobs=16)]: Done 3 out of 16 | elapsed: 0.6s remaining: 2.6s
[Parallel(n_jobs=16)]: Done 4 out of 16 | elapsed: 0.6s remaining: 1.8s
[Parallel(n_jobs=16)]: Done 5 out of 16 | elapsed: 0.7s remaining: 1.5s
[Parallel(n_jobs=16)]: Done 6 out of 16 | elapsed: 0.7s remaining: 1.1s
[Parallel(n_jobs=16)]: Done 7 out of 16 | elapsed: 0.7s remaining: 0.9s
[Parallel(n_jobs=16)]: Done 8 out of 16 | elapsed: 0.7s remaining: 0.7s
[2024-08-01 05:40:14][Stereo][53425][Thread-11][139621954230016][st_pipeline][44][INFO]: cal_qc end, consume time 0.6953s.
[2024-08-01 05:40:15][Stereo][53425][Thread-13][139620997920512][st_pipeline][44][INFO]: cal_qc end, consume time 0.7851s.
[2024-08-01 05:40:15][Stereo][53425][Thread-17][139620024825600][st_pipeline][44][INFO]: cal_qc end, consume time 0.3582s.
[2024-08-01 05:40:15][Stereo][53425][Thread-18][139620016432896][st_pipeline][44][INFO]: cal_qc end, consume time 0.2895s.
[2024-08-01 05:40:15][Stereo][53425][Thread-20][139619999647488][st_pipeline][44][INFO]: cal_qc end, consume time 0.2862s.
[2024-08-01 05:40:15][Stereo][53425][Thread-16][139620033218304][st_pipeline][44][INFO]: cal_qc end, consume time 0.4206s.
[2024-08-01 05:40:15][Stereo][53425][Thread-19][139620008040192][st_pipeline][44][INFO]: cal_qc end, consume time 0.3010s.
[Parallel(n_jobs=16)]: Done 9 out of 16 | elapsed: 0.8s remaining: 0.6s
[Parallel(n_jobs=16)]: Done 10 out of 16 | elapsed: 0.8s remaining: 0.5s
[Parallel(n_jobs=16)]: Done 11 out of 16 | elapsed: 0.8s remaining: 0.4s
[Parallel(n_jobs=16)]: Done 12 out of 16 | elapsed: 0.8s remaining: 0.3s
[Parallel(n_jobs=16)]: Done 13 out of 16 | elapsed: 0.9s remaining: 0.2s
[Parallel(n_jobs=16)]: Done 14 out of 16 | elapsed: 0.9s remaining: 0.1s
[Parallel(n_jobs=16)]: Done 16 out of 16 | elapsed: 0.9s finished

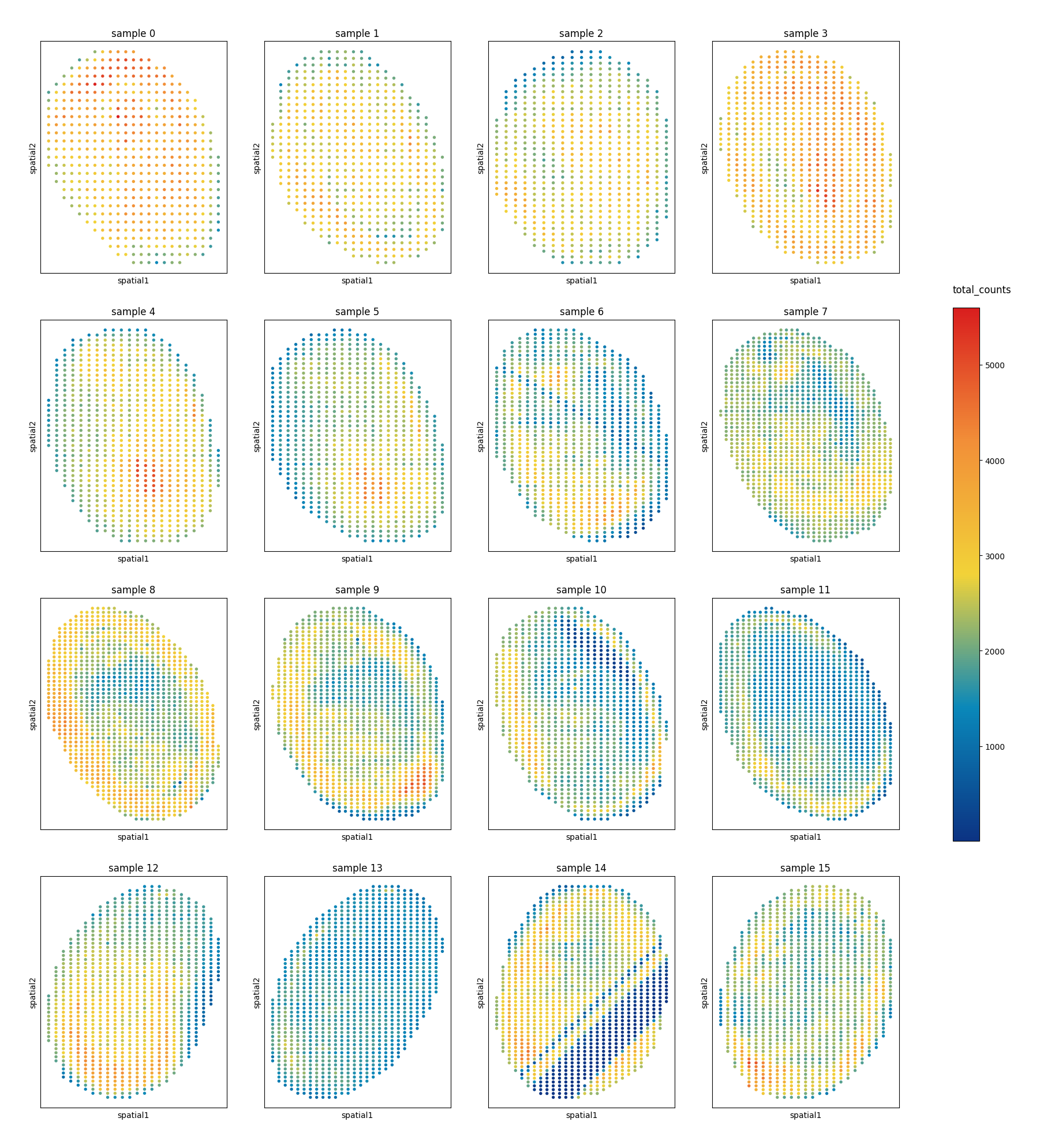

Observing the samples¶
[6]:
ms_data.plt.ms_spatial_scatter(
color_by='total_counts',
ncols=4
)
[6]:
Analysis mode¶
Set global analysis mode to ‘isolated’, all the following methods will run separately on each sample.
[7]:
ms_data.tl.set_scope_and_mode(mode='isolated')
Normalization and PCA¶
[8]:
ms_data.tl.normalize_total()
ms_data.tl.log1p()
ms_data.tl.pca(use_highly_genes=False, n_pcs=30, res_key='pca')
[2024-08-01 05:40:17][Stereo][53425][Thread-25][139607551002368][ms_pipeline][207][INFO]: data_obj(idx=0) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-26][139607542609664][ms_pipeline][207][INFO]: data_obj(idx=1) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-27][139607534216960][ms_pipeline][207][INFO]: data_obj(idx=2) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-28][139607525824256][ms_pipeline][207][INFO]: data_obj(idx=3) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-25][139607551002368][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-29][139607517431552][ms_pipeline][207][INFO]: data_obj(idx=4) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-30][139607509038848][ms_pipeline][207][INFO]: data_obj(idx=5) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-31][139607500646144][ms_pipeline][207][INFO]: data_obj(idx=6) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-32][139607492253440][ms_pipeline][207][INFO]: data_obj(idx=7) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-33][139607483860736][ms_pipeline][207][INFO]: data_obj(idx=8) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-26][139607542609664][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-34][139607475468032][ms_pipeline][207][INFO]: data_obj(idx=9) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-35][139607467075328][ms_pipeline][207][INFO]: data_obj(idx=10) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-27][139607534216960][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-36][139607458682624][ms_pipeline][207][INFO]: data_obj(idx=11) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-37][139607450289920][ms_pipeline][207][INFO]: data_obj(idx=12) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-38][139607441897216][ms_pipeline][207][INFO]: data_obj(idx=13) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-39][139607433504512][ms_pipeline][207][INFO]: data_obj(idx=14) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-40][139607425111808][ms_pipeline][207][INFO]: data_obj(idx=15) in ms_data start to run normalize_total
[2024-08-01 05:40:17][Stereo][53425][Thread-28][139607525824256][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-29][139607517431552][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-30][139607509038848][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-31][139607500646144][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-32][139607492253440][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-33][139607483860736][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-34][139607475468032][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-35][139607467075328][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-36][139607458682624][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-37][139607450289920][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-38][139607441897216][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-39][139607433504512][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-40][139607425111808][st_pipeline][41][INFO]: start to run normalize_total...
[2024-08-01 05:40:17][Stereo][53425][Thread-25][139607551002368][st_pipeline][44][INFO]: normalize_total end, consume time 0.0580s.
[2024-08-01 05:40:17][Stereo][53425][Thread-26][139607542609664][st_pipeline][44][INFO]: normalize_total end, consume time 0.0681s.
[2024-08-01 05:40:17][Stereo][53425][Thread-27][139607534216960][st_pipeline][44][INFO]: normalize_total end, consume time 0.0779s.
[2024-08-01 05:40:17][Stereo][53425][Thread-28][139607525824256][st_pipeline][44][INFO]: normalize_total end, consume time 0.1066s.
[2024-08-01 05:40:17][Stereo][53425][Thread-29][139607517431552][st_pipeline][44][INFO]: normalize_total end, consume time 0.1196s.
[2024-08-01 05:40:17][Stereo][53425][Thread-30][139607509038848][st_pipeline][44][INFO]: normalize_total end, consume time 0.1351s.
[2024-08-01 05:40:17][Stereo][53425][Thread-35][139607467075328][st_pipeline][44][INFO]: normalize_total end, consume time 0.1377s.
[Parallel(n_jobs=16)]: Using backend ThreadingBackend with 16 concurrent workers.
[Parallel(n_jobs=16)]: Done 1 tasks | elapsed: 0.1s
[Parallel(n_jobs=16)]: Done 2 out of 16 | elapsed: 0.1s remaining: 0.7s
[Parallel(n_jobs=16)]: Done 3 out of 16 | elapsed: 0.1s remaining: 0.5s
[Parallel(n_jobs=16)]: Done 4 out of 16 | elapsed: 0.2s remaining: 0.5s
[Parallel(n_jobs=16)]: Done 5 out of 16 | elapsed: 0.2s remaining: 0.4s
[Parallel(n_jobs=16)]: Done 6 out of 16 | elapsed: 0.2s remaining: 0.3s
[Parallel(n_jobs=16)]: Done 7 out of 16 | elapsed: 0.2s remaining: 0.3s
[2024-08-01 05:40:17][Stereo][53425][Thread-37][139607450289920][st_pipeline][44][INFO]: normalize_total end, consume time 0.1548s.
[2024-08-01 05:40:17][Stereo][53425][Thread-38][139607441897216][st_pipeline][44][INFO]: normalize_total end, consume time 0.1619s.
[2024-08-01 05:40:17][Stereo][53425][Thread-32][139607492253440][st_pipeline][44][INFO]: normalize_total end, consume time 0.1969s.
[2024-08-01 05:40:17][Stereo][53425][Thread-40][139607425111808][st_pipeline][44][INFO]: normalize_total end, consume time 0.1809s.
[2024-08-01 05:40:17][Stereo][53425][Thread-31][139607500646144][st_pipeline][44][INFO]: normalize_total end, consume time 0.2324s.
[2024-08-01 05:40:17][Stereo][53425][Thread-34][139607475468032][st_pipeline][44][INFO]: normalize_total end, consume time 0.2282s.
[2024-08-01 05:40:17][Stereo][53425][Thread-39][139607433504512][st_pipeline][44][INFO]: normalize_total end, consume time 0.2740s.
[2024-08-01 05:40:17][Stereo][53425][Thread-33][139607483860736][st_pipeline][44][INFO]: normalize_total end, consume time 0.3241s.
[2024-08-01 05:40:17][Stereo][53425][Thread-36][139607458682624][st_pipeline][44][INFO]: normalize_total end, consume time 0.3393s.
[2024-08-01 05:40:17][Stereo][53425][Thread-44][139607458682624][ms_pipeline][207][INFO]: data_obj(idx=0) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-45][139607483860736][ms_pipeline][207][INFO]: data_obj(idx=1) in ms_data start to run log1p
[Parallel(n_jobs=16)]: Done 8 out of 16 | elapsed: 0.2s remaining: 0.2s
[Parallel(n_jobs=16)]: Done 9 out of 16 | elapsed: 0.2s remaining: 0.2s
[Parallel(n_jobs=16)]: Done 10 out of 16 | elapsed: 0.3s remaining: 0.2s
[Parallel(n_jobs=16)]: Done 11 out of 16 | elapsed: 0.3s remaining: 0.1s
[Parallel(n_jobs=16)]: Done 12 out of 16 | elapsed: 0.3s remaining: 0.1s
[Parallel(n_jobs=16)]: Done 13 out of 16 | elapsed: 0.3s remaining: 0.1s
[Parallel(n_jobs=16)]: Done 14 out of 16 | elapsed: 0.3s remaining: 0.0s
[Parallel(n_jobs=16)]: Done 16 out of 16 | elapsed: 0.4s finished
[Parallel(n_jobs=16)]: Using backend ThreadingBackend with 16 concurrent workers.
[2024-08-01 05:40:17][Stereo][53425][Thread-46][139607433504512][ms_pipeline][207][INFO]: data_obj(idx=2) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-44][139607458682624][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-47][139607475468032][ms_pipeline][207][INFO]: data_obj(idx=3) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-48][139607551002368][ms_pipeline][207][INFO]: data_obj(idx=4) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-49][139607542609664][ms_pipeline][207][INFO]: data_obj(idx=5) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-50][139607534216960][ms_pipeline][207][INFO]: data_obj(idx=6) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-45][139607483860736][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-51][139607525824256][ms_pipeline][207][INFO]: data_obj(idx=7) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-52][139607517431552][ms_pipeline][207][INFO]: data_obj(idx=8) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-53][139607509038848][ms_pipeline][207][INFO]: data_obj(idx=9) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-54][139607500646144][ms_pipeline][207][INFO]: data_obj(idx=10) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-55][139607492253440][ms_pipeline][207][INFO]: data_obj(idx=11) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-56][139607467075328][ms_pipeline][207][INFO]: data_obj(idx=12) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-57][139607450289920][ms_pipeline][207][INFO]: data_obj(idx=13) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-58][139607441897216][ms_pipeline][207][INFO]: data_obj(idx=14) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-46][139607433504512][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-59][139607425111808][ms_pipeline][207][INFO]: data_obj(idx=15) in ms_data start to run log1p
[2024-08-01 05:40:17][Stereo][53425][Thread-47][139607475468032][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-48][139607551002368][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-49][139607542609664][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-50][139607534216960][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-51][139607525824256][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-52][139607517431552][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-53][139607509038848][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-54][139607500646144][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-55][139607492253440][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-56][139607467075328][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-57][139607450289920][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-44][139607458682624][st_pipeline][44][INFO]: log1p end, consume time 0.0295s.
[2024-08-01 05:40:17][Stereo][53425][Thread-58][139607441897216][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-59][139607425111808][st_pipeline][41][INFO]: start to run log1p...
[2024-08-01 05:40:17][Stereo][53425][Thread-45][139607483860736][st_pipeline][44][INFO]: log1p end, consume time 0.0280s.
[2024-08-01 05:40:17][Stereo][53425][Thread-46][139607433504512][st_pipeline][44][INFO]: log1p end, consume time 0.0390s.
[2024-08-01 05:40:18][Stereo][53425][Thread-47][139607475468032][st_pipeline][44][INFO]: log1p end, consume time 0.0526s.
[2024-08-01 05:40:18][Stereo][53425][Thread-48][139607551002368][st_pipeline][44][INFO]: log1p end, consume time 0.0789s.
[2024-08-01 05:40:18][Stereo][53425][Thread-49][139607542609664][st_pipeline][44][INFO]: log1p end, consume time 0.0882s.
[2024-08-01 05:40:18][Stereo][53425][Thread-50][139607534216960][st_pipeline][44][INFO]: log1p end, consume time 0.1010s.
[2024-08-01 05:40:18][Stereo][53425][Thread-54][139607500646144][st_pipeline][44][INFO]: log1p end, consume time 0.1049s.
[2024-08-01 05:40:18][Stereo][53425][Thread-56][139607467075328][st_pipeline][44][INFO]: log1p end, consume time 0.1106s.
[2024-08-01 05:40:18][Stereo][53425][Thread-52][139607517431552][st_pipeline][44][INFO]: log1p end, consume time 0.1422s.
[2024-08-01 05:40:18][Stereo][53425][Thread-59][139607425111808][st_pipeline][44][INFO]: log1p end, consume time 0.1396s.
[2024-08-01 05:40:18][Stereo][53425][Thread-57][139607450289920][st_pipeline][44][INFO]: log1p end, consume time 0.1608s.
[2024-08-01 05:40:18][Stereo][53425][Thread-51][139607525824256][st_pipeline][44][INFO]: log1p end, consume time 0.1949s.
[2024-08-01 05:40:18][Stereo][53425][Thread-55][139607492253440][st_pipeline][44][INFO]: log1p end, consume time 0.2004s.
[Parallel(n_jobs=16)]: Done 1 tasks | elapsed: 0.1s
[Parallel(n_jobs=16)]: Done 2 out of 16 | elapsed: 0.1s remaining: 0.7s
[Parallel(n_jobs=16)]: Done 3 out of 16 | elapsed: 0.1s remaining: 0.4s
[Parallel(n_jobs=16)]: Done 4 out of 16 | elapsed: 0.1s remaining: 0.3s
[Parallel(n_jobs=16)]: Done 5 out of 16 | elapsed: 0.1s remaining: 0.3s
[Parallel(n_jobs=16)]: Done 6 out of 16 | elapsed: 0.2s remaining: 0.3s
[Parallel(n_jobs=16)]: Done 7 out of 16 | elapsed: 0.2s remaining: 0.2s
[Parallel(n_jobs=16)]: Done 8 out of 16 | elapsed: 0.2s remaining: 0.2s
[Parallel(n_jobs=16)]: Done 9 out of 16 | elapsed: 0.2s remaining: 0.1s
[Parallel(n_jobs=16)]: Done 10 out of 16 | elapsed: 0.2s remaining: 0.1s
[Parallel(n_jobs=16)]: Done 11 out of 16 | elapsed: 0.2s remaining: 0.1s
[Parallel(n_jobs=16)]: Done 12 out of 16 | elapsed: 0.2s remaining: 0.1s
[Parallel(n_jobs=16)]: Done 13 out of 16 | elapsed: 0.3s remaining: 0.1s
[2024-08-01 05:40:18][Stereo][53425][Thread-53][139607509038848][st_pipeline][44][INFO]: log1p end, consume time 0.2228s.
[2024-08-01 05:40:18][Stereo][53425][Thread-58][139607441897216][st_pipeline][44][INFO]: log1p end, consume time 0.2201s.
[2024-08-01 05:40:18][Stereo][53425][Thread-63][139607441897216][ms_pipeline][207][INFO]: data_obj(idx=0) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-64][139607509038848][ms_pipeline][207][INFO]: data_obj(idx=1) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-65][139607492253440][ms_pipeline][207][INFO]: data_obj(idx=2) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-66][139607525824256][ms_pipeline][207][INFO]: data_obj(idx=3) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-63][139607441897216][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-67][139607551002368][ms_pipeline][207][INFO]: data_obj(idx=4) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-68][139607542609664][ms_pipeline][207][INFO]: data_obj(idx=5) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-64][139607509038848][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-65][139607492253440][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-69][139607534216960][ms_pipeline][207][INFO]: data_obj(idx=6) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-70][139607517431552][ms_pipeline][207][INFO]: data_obj(idx=7) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-71][139607500646144][ms_pipeline][207][INFO]: data_obj(idx=8) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-72][139607483860736][ms_pipeline][207][INFO]: data_obj(idx=9) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-73][139607475468032][ms_pipeline][207][INFO]: data_obj(idx=10) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-66][139607525824256][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-74][139607467075328][ms_pipeline][207][INFO]: data_obj(idx=11) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-74][139607467075328][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-76][139607450289920][ms_pipeline][207][INFO]: data_obj(idx=13) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-77][139607433504512][ms_pipeline][207][INFO]: data_obj(idx=14) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-78][139607425111808][ms_pipeline][207][INFO]: data_obj(idx=15) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-67][139607551002368][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-68][139607542609664][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-69][139607534216960][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-70][139607517431552][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-71][139607500646144][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-72][139607483860736][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-73][139607475468032][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-75][139607458682624][ms_pipeline][207][INFO]: data_obj(idx=12) in ms_data start to run pca
[2024-08-01 05:40:18][Stereo][53425][Thread-76][139607450289920][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-77][139607433504512][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-78][139607425111808][st_pipeline][41][INFO]: start to run pca...
[2024-08-01 05:40:18][Stereo][53425][Thread-75][139607458682624][st_pipeline][41][INFO]: start to run pca...
[Parallel(n_jobs=16)]: Done 14 out of 16 | elapsed: 0.3s remaining: 0.0s
[Parallel(n_jobs=16)]: Done 16 out of 16 | elapsed: 0.3s finished
[Parallel(n_jobs=16)]: Using backend ThreadingBackend with 16 concurrent workers.
[2024-08-01 05:40:35][Stereo][53425][Thread-63][139607441897216][st_pipeline][44][INFO]: pca end, consume time 17.4941s.
[2024-08-01 05:40:36][Stereo][53425][Thread-64][139607509038848][st_pipeline][44][INFO]: pca end, consume time 18.0058s.
[2024-08-01 05:40:36][Stereo][53425][Thread-65][139607492253440][st_pipeline][44][INFO]: pca end, consume time 18.6352s.
[2024-08-01 05:40:38][Stereo][53425][Thread-68][139607542609664][st_pipeline][44][INFO]: pca end, consume time 20.0702s.
[2024-08-01 05:40:38][Stereo][53425][Thread-75][139607458682624][st_pipeline][44][INFO]: pca end, consume time 20.0403s.
[2024-08-01 05:40:38][Stereo][53425][Thread-72][139607483860736][st_pipeline][44][INFO]: pca end, consume time 20.0752s.
[2024-08-01 05:40:38][Stereo][53425][Thread-73][139607475468032][st_pipeline][44][INFO]: pca end, consume time 20.1233s.
[2024-08-01 05:40:38][Stereo][53425][Thread-66][139607525824256][st_pipeline][44][INFO]: pca end, consume time 20.1609s.
[Parallel(n_jobs=16)]: Done 1 tasks | elapsed: 20.1s
[Parallel(n_jobs=16)]: Done 2 out of 16 | elapsed: 20.1s remaining: 2.4min
[Parallel(n_jobs=16)]: Done 3 out of 16 | elapsed: 20.2s remaining: 1.5min
[Parallel(n_jobs=16)]: Done 4 out of 16 | elapsed: 20.2s remaining: 1.0min
[Parallel(n_jobs=16)]: Done 5 out of 16 | elapsed: 20.2s remaining: 44.4s
[Parallel(n_jobs=16)]: Done 6 out of 16 | elapsed: 20.2s remaining: 33.6s
[Parallel(n_jobs=16)]: Done 7 out of 16 | elapsed: 20.2s remaining: 26.0s
[Parallel(n_jobs=16)]: Done 8 out of 16 | elapsed: 20.3s remaining: 20.3s
[2024-08-01 05:40:38][Stereo][53425][Thread-70][139607517431552][st_pipeline][44][INFO]: pca end, consume time 20.1361s.
[2024-08-01 05:40:38][Stereo][53425][Thread-77][139607433504512][st_pipeline][44][INFO]: pca end, consume time 20.2451s.
[2024-08-01 05:40:38][Stereo][53425][Thread-76][139607450289920][st_pipeline][44][INFO]: pca end, consume time 20.2892s.
[Parallel(n_jobs=16)]: Done 9 out of 16 | elapsed: 20.3s remaining: 15.8s
[Parallel(n_jobs=16)]: Done 10 out of 16 | elapsed: 20.3s remaining: 12.2s
[Parallel(n_jobs=16)]: Done 11 out of 16 | elapsed: 20.4s remaining: 9.3s
[2024-08-01 05:40:39][Stereo][53425][Thread-67][139607551002368][st_pipeline][44][INFO]: pca end, consume time 21.4241s.
[2024-08-01 05:40:39][Stereo][53425][Thread-78][139607425111808][st_pipeline][44][INFO]: pca end, consume time 21.4717s.
[2024-08-01 05:40:39][Stereo][53425][Thread-69][139607534216960][st_pipeline][44][INFO]: pca end, consume time 21.4997s.
[2024-08-01 05:40:39][Stereo][53425][Thread-71][139607500646144][st_pipeline][44][INFO]: pca end, consume time 21.4943s.
[2024-08-01 05:40:39][Stereo][53425][Thread-74][139607467075328][st_pipeline][44][INFO]: pca end, consume time 21.5490s.
[Parallel(n_jobs=16)]: Done 12 out of 16 | elapsed: 21.6s remaining: 7.2s
[Parallel(n_jobs=16)]: Done 13 out of 16 | elapsed: 21.6s remaining: 5.0s
[Parallel(n_jobs=16)]: Done 14 out of 16 | elapsed: 21.6s remaining: 3.1s
[Parallel(n_jobs=16)]: Done 16 out of 16 | elapsed: 21.6s finished

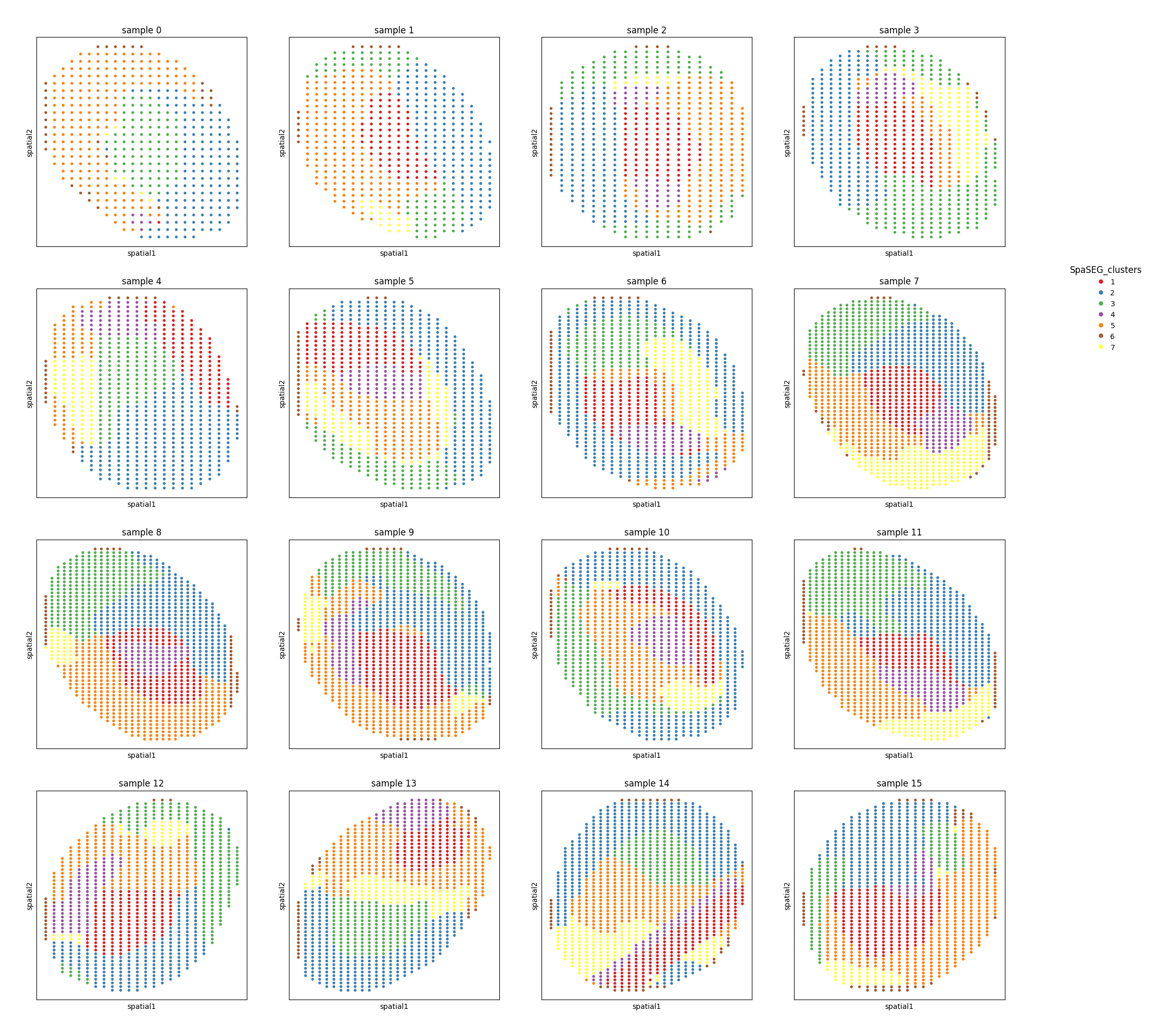

Running SpaSEG on multi-sample¶
This process can be seen as a clustering, min_label represents the number of cell/bin types you expect, the training will stop when the number of cell/bin types reaches min_label or the number of iterations reaches iterations.
For more information you can refer to api ms_data.tl.spa_seg.
[9]:
ins = ms_data.tl.spa_seg(
sim_weight=0.2,
con_weight=0.4,
min_label=7,
iterations=2100,
gpu='0' # set gpu to None to run on cpu
)
[2024-08-01 05:40:39][Stereo][53425][MainThread][139627982587712][spaseg][90][INFO]:
Put the data and model into GPU
[2024-08-01 05:40:39][Stereo][53425][MainThread][139627982587712][spaseg][96][INFO]: input matrix shape: (16, 30, 32, 56)
[2024-08-01 05:40:39][Stereo][53425][MainThread][139627982587712][spaseg][97][INFO]: feed the input matrix to cuda:0
[2024-08-01 05:41:03][Stereo][53425][MainThread][139627982587712][spaseg][104][INFO]: create the model and put it into cuda:0
[2024-08-01 05:41:03][Stereo][53425][MainThread][139627982587712][spaseg][109][INFO]: Start training with 2100 iterations
/data/users/tanliwei/conda/envs/stereopy-rapids/lib/python3.8/site-packages/torch/nn/_reduction.py:42: UserWarning: size_average and reduce args will be deprecated, please use reduction='mean' instead.
warnings.warn(warning.format(ret))
95%|█████████▌| 1997/2100 [00:34<00:01, 69.42it/s] [2024-08-01 05:41:38][Stereo][53425][MainThread][139627982587712][spaseg][174][INFO]: nLabels 7 reached minLabels 7.
95%|█████████▌| 1997/2100 [00:34<00:01, 57.23it/s]
Calculate the ARI and NMI with a cell type annotation by specifying an obs column name.
[10]:
ins.calculate_metrics(true_labels_column='annotation')
{'ARI': 0.26873064929160256, 'NMI': 0.3195126468239716}
{'ARI': 0.08110615364555385, 'NMI': 0.1954948773064302}
{'ARI': 0.18827807221005038, 'NMI': 0.4053059657599966}
{'ARI': 0.22290887792967007, 'NMI': 0.3660943699211063}
{'ARI': 0.13533366762807206, 'NMI': 0.3446437190536986}
{'ARI': 0.35902063390069006, 'NMI': 0.4285834970729185}
{'ARI': 0.39436756327218064, 'NMI': 0.42808327518534317}
{'ARI': 0.18428553012551033, 'NMI': 0.3817282519337245}
{'ARI': 0.1836244318381701, 'NMI': 0.36220595139933853}
{'ARI': 0.2192382705723971, 'NMI': 0.37443756591403415}
{'ARI': 0.36240036850648244, 'NMI': 0.4238053697870983}
{'ARI': 0.2288863031774178, 'NMI': 0.3848514950786887}
{'ARI': 0.1773153616057184, 'NMI': 0.3320517792341717}
{'ARI': 0.18018283309295055, 'NMI': 0.3114488788698329}
{'ARI': 0.29896836535339233, 'NMI': 0.36059379054933655}
{'ARI': 0.12481216176699998, 'NMI': 0.30272499273208353}
Result visualization¶
The result will be store as an obs column named ‘SpaSEG_clusters’
[11]:
ms_data.plt.ms_spatial_scatter(
color_by='cluster',
color_key='SpaSEG_clusters',
ncols=4
)
[11]:
Running SpaSEG on single sample¶
Here we take sample 0 as example.
The normalization and pca have been run above already, we can run the SpaSEG directly.
[12]:
data = ms_data[0]
Set result_prefix(default is ‘SpaSEG’) to an another value to avoid overwriting the result of the above multi-sample analysis.
Here the result will be store as an obs column named ‘SpaSEG_sample0_clusters’
[19]:
ins_single = data.tl.spa_seg(
sim_weight=0.2,
con_weight=0.4,
min_label=7,
iterations=10000,
gpu='0', # set gpu to None to run on CPU
result_prefix='SpaSEG_sample0'
)
[2024-08-01 05:57:39][Stereo][53425][MainThread][139627982587712][spaseg][90][INFO]:
Put the data and model into GPU
[2024-08-01 05:57:39][Stereo][53425][MainThread][139627982587712][spaseg][96][INFO]: input matrix shape: (1, 30, 23, 27)
[2024-08-01 05:57:39][Stereo][53425][MainThread][139627982587712][spaseg][97][INFO]: feed the input matrix to cuda:0
[2024-08-01 05:57:39][Stereo][53425][MainThread][139627982587712][spaseg][104][INFO]: create the model and put it into cuda:0
[2024-08-01 05:57:39][Stereo][53425][MainThread][139627982587712][spaseg][109][INFO]: Start training with 10000 iterations
/data/users/tanliwei/conda/envs/stereopy-rapids/lib/python3.8/site-packages/torch/nn/_reduction.py:42: UserWarning: size_average and reduce args will be deprecated, please use reduction='mean' instead.
warnings.warn(warning.format(ret))
100%|██████████| 10000/10000 [01:31<00:00, 109.45it/s]
[20]:
ins_single.calculate_metrics('annotation')
{'ARI': 0.2497199294692335, 'NMI': 0.29387168728926355}
Result visualization¶
[24]:
data.plt.cluster_scatter(res_key='SpaSEG_sample0_clusters', show_plotting_scale=False, dot_size=100)
[24]:
[ ]:
